TMSS
The U.S. Army’s Standard Integrated Command Post System
As part of the Army’s Standard Integrated Command Post System (SICPS) HDT Global’s Trailer Mounted Support System (TMSS) in cooperation with Northrop Grumman Corporation’s Command Post Platform (CPP) provide high mobility tactical operations centers that can be rapidly deployed for command, control and communications on the battlefield.
Utilizing the DRASH® Shelter and UST Trailer design, SICPS TMSS Medium and Large systems combine shelter, utilities, power, environmental control and tactical mobility to form a complete command operation center.
Set up within minutes, the DRASH SICPS TMSS Medium provides more than 442 square feet of usable space, includes a 5 ton ECU, and allows for the use of up to 18 kW of power.
The TMSS Large system provides 1,250 square feet of usable space, includes a 12 ton ECU, and allows for the use of up to 33 kW of power. Both systems are completely towable by military vehicles and have been tested to maintain ambient temperatures in climates ranging from -50°F to 131°F (45°C to 55°C).
Because it is part of the Army’s SICPS Program, the TMSS systems are required to meet all Army requirements for command post systems and have undergone and passed extensive testing at the Army’s Aberdeen Test Center.
HDT’s SICPS TMSS systems are currently being fielded to all U.S. Army maneuver brigade combat teams, including units in Iraq and Afghanistan.
The TMSS is available through the Army’s SICPS Program, or sold as a shelter and trailer combination through HDT Global. LIN numbers and NSNs are available for both systems.
TMSS Medium
Trailer features
- 16 gallon (60.5 liter) fuel tank
- 6" (15.2 cm) channel steel
- HMMWV run-flat tires
- HMMWV towable
- Slingload capabilities
Environmental Control Unit (ECU) features:
- 60,000 BTU/H cooling
- 61,000 BTU/H heating
- 17,000 BTU/H pre-heater
Generator features
- 18 kW with 1.25 gph (4.7 kph) at full load
Shelter features
- 442 square feet (41 m2)
- 639 lbs (289.8 kg)
Total system weight
- 4,165 lbs (1889.2 kg) weight with fuel
- 338 lbs (153.3 kg) weight
Components |
Quantity |
MX Shelter System | 1 |
HP-2C/185 Trailer | 1 |
MX Side Door Connector | 1 |
MX End Cap Connectors | 4 |
15' x 16" Supply Duct | 1 |
15' x 16" Return Duct | 1 |
Supply and Return Auxiliary Fuel Lines | 1 |
Power Distribution Unit (PDU) with CD | 1 |
25', 60 amp, 5 pin PDU Power Cable | 1 |
Shelter Electrical Kit | 1 |
Trailer Electrical Kit | 1 |
DRASH 4-Light Set | 1 |
Trailer ECU and Cargo Tarps | 2 |
DRASH TUFF-TABLES® | 6 |
MX Shelter Field Repair Kit | 1 |
Trailer Service Push Package | 1 |
TMSS Large
Trailer features
- 45 gallon (170 liter) fuel tank
- 6" (15.2 cm) channel steel
- LMTV/FMTV run-flat tires
- LMTV/FMTV towable
- Ground slingload capabilities
Environmental Control Unit (ECU) features
- 144,000 BTU/H cooling
- 85,325 BTU/H electric heat
- 80,000 BTU/H fuel-fired auxiliary heater
- Total = 165,325 BTU/H heat
Generator features
- 33 kW with 2.65 gph (10 lph) at full load
Shelter features
- 1,250 square feet (116 m2)
- 1,600 lbs (725.7 kg)
Total system weight
- 11,900 lbs (5397.7 kg) weight with fuel
- 1,180 lbs (535.2 kg) tongue weight
Components |
Quantity |
DRASH J Shelter System | 1 |
HP-8 Trailer | 1 |
Bladder and Blower System | 1 |
Aluminum End Wall System | 1 |
J Side Door Connector | 1 |
1XBTJ End Cap Connectors | 4 |
35' x 18" Supply Duct | 1 |
25' x 16" Return Ducts | 2 |
Supply and Return Auxiliary Fuel Lines | 1 set |
Power Distribution Unit (PDU) with CD | 1 |
50', 60 amp, 5 pin PDU Power Cable | 1 |
Shelter Electrical Kit | 1 |
Trailer Electrical Kit | 1 |
DRASH 2-Light Sets | 3 |
Aluminum Tri-Fold Ladder | 1 |
Trailer ECU and Cargo Tarps | 2 |
DRASH TUFF-TABLES | 8 |
J Shelter Field Repair Kit | 1 |
Trailer Service Push Package | 1 |
TMMS Footprints

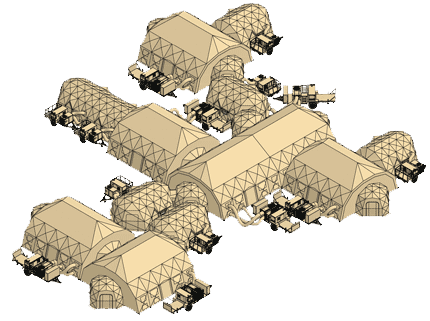

Division Main CP
Components |
Quantity |
TMSS Medium Shelter Systems | 7 |
TMSS Large Shelter Systems | 7 |
BFSB
Components |
Quantity |
TMSS Medium Shelter Systems | 3 |
TMSS Large Shelter Systems | 1 |
Small Command Post | 2 |
BN
Components |
Quantity |
TMSS Medium Shelter Systems | 2 |

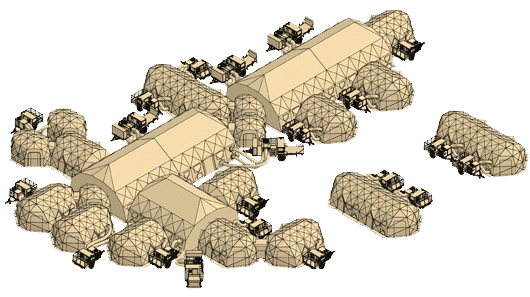

ARMY
Components |
Quantity |
TMSS Medium Shelter Systems | 16 |
TMSS Large Shelter Systems | 5 |
2XB Shelter | 2 |
HP2C/188 | 1 |
Division TAC
Components |
Quantity |
TMSS Medium Shelter Systems | 2 |
TMSS Large Shelter Systems | 1 |
Small Command Post | 1 |

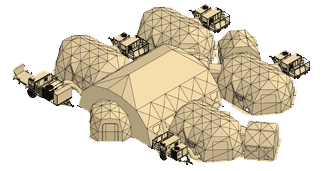

FIRES, CSB, and MED
Components |
Quantity |
TMSS Medium Shelter Systems | 4 |
TMSS Large Shelter Systems | 1 |
Small Command Post | 2 |
BSB
Components |
Quantity |
TMSS Medium Shelter Systems | 3 |

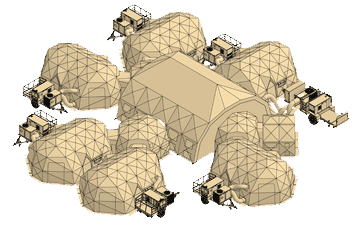

BCT, IBCT, CAB’s, SBCT, ACR
Components |
Quantity |
TMSS Medium Shelter Systems | 6 |
TMSS Large Shelter Systems | 1 |
Small Command Post | 1 |
1XBT Shelter | 1 |

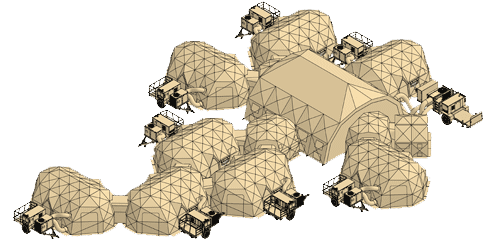

BCT, IBCT, CAB’s, SBCT, ACR with TAC
Components |
Quantity |
TMSS Medium Shelter Systems | 8 |
TMSS Large Shelter Systems | 1 |
Small Command Post | 1 |
1XBT Shelter | 1 |
